Product Details

Table type shrink tunnel, it can be used with Impulse Foot Sealer.

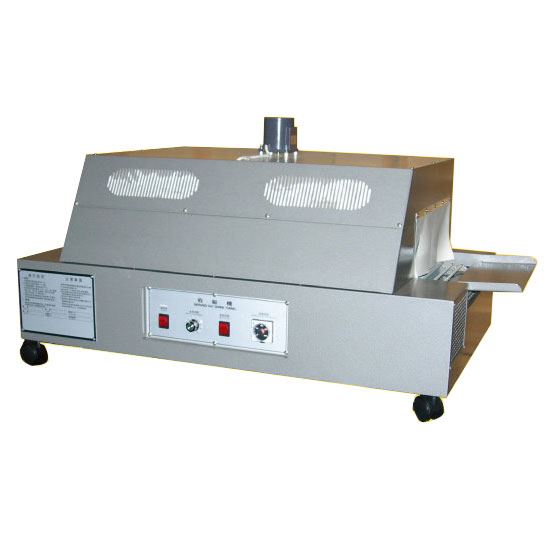

This is a Table type shrink packing machine, suitable small items packing, and can be used with a 「Impulse Foot Sealer」 .

when it is packaged in a small amount. Please refer to our 「Overwrapping Machine」for a large number of packaging.

Features

• • ►Automatic temperature control.
  • ►Continuous operation of roller converyor, speed adjustable.
  • ►Moisture proof capability can prevent products from dust moisture and thief.
  • ►Run with PVC, POF, PP shrink material.

• Specification

  MODEL / SPECIFICATION	ASM-500A	ASM-500B
  Conveyor Speed (m/min)	0-6	0-6
  Max. Temperature	150°C	150°C
  Tunnel Size (L x W x H mm)	800 x 400 x 150	800 x 400 x 200
  Motor	25W x 2	25W x 2
  Heater	5 KW	5.2 KW
  Machine Size (L x W x H mm)	1300 x 680 x 605	1300 x 680 x 655
  Case Size (L x W x H mm)	1180 x 780 x 8700	1180 x 780 x 870
  N.W. (kgs) / G.W. (kgs)	60 / 100	65 / 110

  Options

  1. Sealing machine PH-300/450, packing steps: Put products into shrinkable bags → sealing (sealing machine PH-300/450) → put into shrink tunnel (ASM-500/501).

  2. Foot Frame:







  Applications

  Shrink for outer packing for tape, CD, stationery, books, hardwares, tools, toys, cosmetics, gift boxes,woodworks, foods etc to prevent products from dust, moisture and thief.
