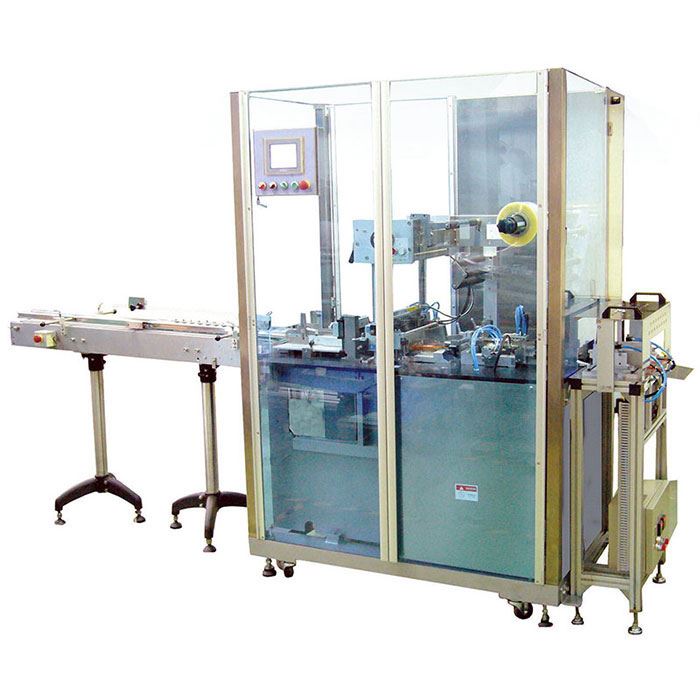

High Speed Overwrapping Machine
Product Introduction
With a high-speed conveying stability system for product high-speed movement.
Large producing factory must buy!
Suitable for large-capacity packaging, the machine is equipped with a high-speed conveying stability system, which is conducive to high-speed movement of machine running.
Features
-
- ►Excellent packaging quality.
- ►Trailing moving individual side-seal system.
- ►Servo motor for film feeding control, motor for tear tape feeding control.
- ►PLC control with touch screen display.
- ►Precise vacuum infeed system of film.
- ►Flexible size ranges with quicker changeover system, easy adjustment for different product sizes.
- ►Drived by mechanic system, easy of operation and maintenance.
-
-
Specification
- ■Packing Dimensions - X (mm): 70 - 200mm
- ■Packing Dimensions - Y (mm): 50 - 140mm
- ■Packing Dimensions - Z (mm): 10 - 30mm
- ■Packing Capacity: 65 ~ 85 packs/min
- ■Heater: 2 KW
- ■Vacuum Pump: 1 HP
- ■Motor: 1 KW
- ■Material: BOPP (OPP), KOP
- ■Power: 220/380V 3Ø 50/60HZ
- ■Machine Size: L 3000 x W 1200 x H 2200mm
- ■Wooden Case Size: L 2200 x W 1750 x H 2400mm / L 2300 x W 850 x H 1270mm
- ■N.W.: 1000 kgs
- ■G.W.: 1100, 250 kgs
Applications
Suitable for outer overwapping of CD/DVD box, Stationery, condom box, playing card, cigarette box, perfume box, cosmetic box, drug box, chocolate box, candy box etc.
