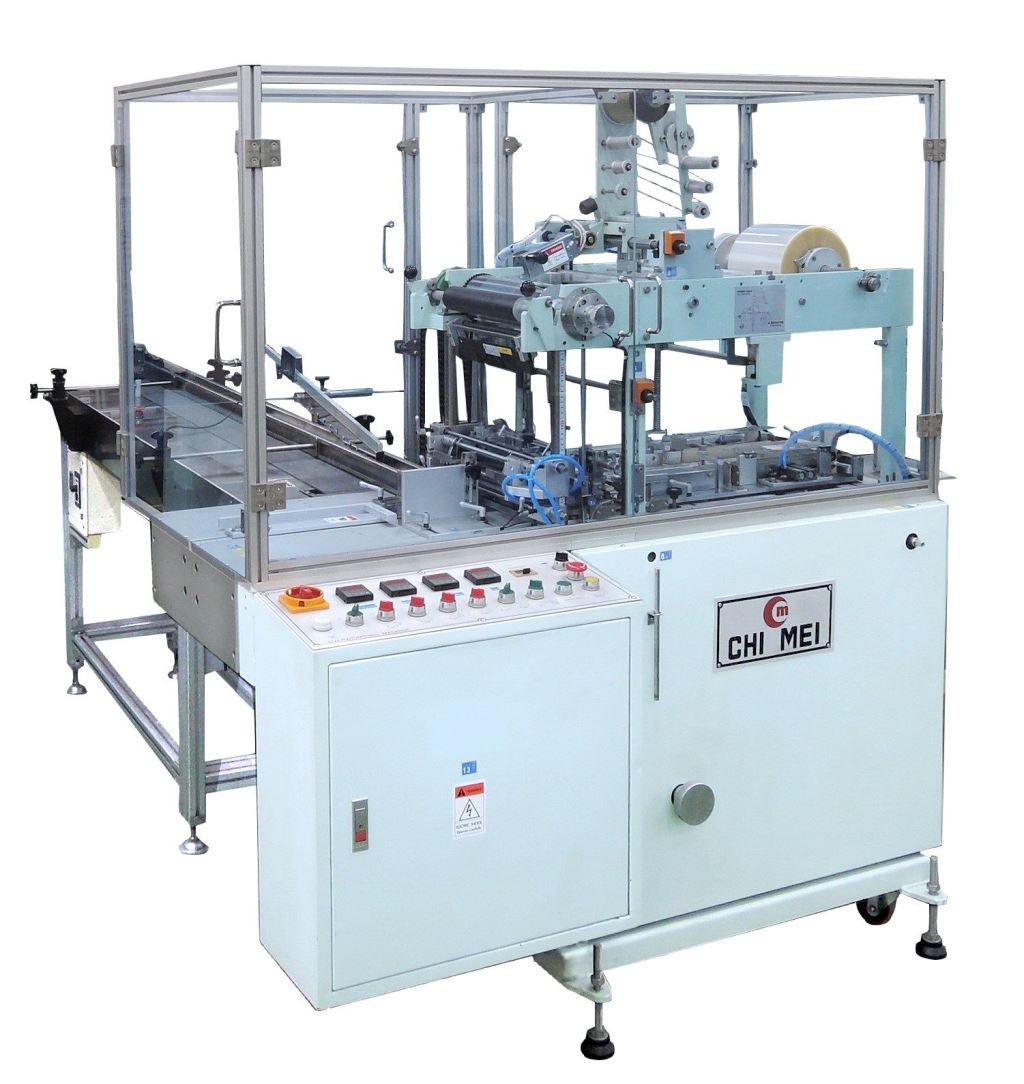

Automatic Overwrapping Machine
Product Introduction
Overwrapping Machine with quick changeover system
Overwrapping Machine is equipped with a "size quick adjustment system", suitable for users who often change the size of the package.
Overwrapping machine is suitable for square and rectangle products outer over wrapping, like CD/DVD box, playing card, soap, contact lens box, cigarette box, healthy food box, drug box, condom box, cosmetic box, perfume box, chocolate box, candy box, biscuit, note pad, soup cube...etc.
Features
- ►Machine drived by cam mechanic system, stable and easy of operation and maintenance.
- ►Wrapping materials: Cellophane, KOP, BOPP(OPP) and heat-sealable film or paper.
- ►Enclosed quicker changeover system for different product sizes easy adjustment. Only takes 15min. for size changeover.
- ►Machine with feeding conveyor, it's easy to combine with other equipment, such as cartoning machine, labeing machine...etc.
- ►Equipped with optional stacker or collating system to save manpower and increase production.
-
-
Specification
| SPECIFICATION |
PM-808M |
PM-808A |
PM-808B |
PM-808C |
| Packing Dimensions - X (mm) |
40 - 120mm |
50 - 200mm |
50 - 200mm |
50 - 200mm |
| Packing Dimensions - Y (mm) |
20 - 65mm |
30 - 100mm |
55 - 160mm |
55 - 160mm |
| Packing Dimensions - Z (mm) |
10 - 20mm |
10 - 50mm |
10 - 50mm |
30 - 80mm |
| Packing Capacity |
30 - 50 packs/min |
30 - 50 packs/min |
30 - 50 packs/min |
20 - 40 packs/min |
| Heater |
1.2 KW |
1.2 KW |
1.2 KW |
1.2 KW |
| Motor |
1/4 HP x 1, 90W x 1 |
1/4 HP x 1, 90W x 1 |
1/4 HP x 1, 90W x 1 |
1/4 HP x 1, 90W x 1 |
| Machine Size L x W x H (mm) |
1630 x 2640 x 1830 |
1630 x 2640 x 1830 |
1630 x 2640 x 1830 |
1630 x 2640 x 1880 |
| Wooden Case Size L x W x H (mm) |
1820 x 1300 x 2000
2150 x 850 x 1280 |
1820 x 1300 x 2000
2150 x 850 x 1280 |
1820 x 1300 x 2000
2150 x 850 x 1280 |
1820 x 1300 x 2200
2150 x 850 x 1280 |
| N.W. |
680, 100kgs |
680, 100kgs |
680, 100kgs |
680, 100kgs |
| G.W. |
800, 200kgs |
800, 200kgs |
800, 200kgs |
800, 200kgs |
Options
- Tear tape system.
- Photo-Cell device control.
- Dot side seals.
- Size change tools.
- Multi-Box feeding system.
- Slitting system for film width.
- Safety door with interlock.
- Strengthen side seals hot press device. (PM-803A)
- Hot press shrink device. (PM-803C)
- Shrink tunnel. (ASM-501A)
- Stacker. (PM-805)
- Feeding Hopper.
Applications
- Suitable for outer over wrapping of CD/DVD box, stationery, condom box, playing card, cigarettes box, perfume box, cosmetic box, drugs box, candy and chocolate box...etc.
